Engineering Showcase

City Escape Mall

1,200 m² High-Tensile Architectural Membrane Structure Engineering & Supply

Project Name
City Escape Mall
Coverage Area
1,200 m²
Structure Type
Tensile Membrane
Contractor & Supplier
ADM Egypt
Engineering Overview

Architectural Tensile Fabric Solutions for Modern Commercial Infrastructure

ADM for Building Materials completed the specialized design engineering, material sourcing, and structural implementation of the high-tensile membrane roof system for City Escape Mall. Spanning over 1,200 square meters, this installation provides durable, weather-resistant protection and translucent ambient daylighting for the commercial complex's outdoor concourse and entry plazas.

Tensile membrane architecture offers superior structural efficiency compared to traditional rigid roofing, minimizing steel support requirements while enabling expansive column-free coverage. ADM utilized heavy-duty PVDF-coated architectural polyester fabric integrated with anti-corrosion structural steel anchoring networks engineered to exceed local building safety requirements and international ISO performance standards.

Technical Specifications & Material Standards

Built to withstand severe thermal expansion, high wind pressures, and intense solar exposure, every component used in the City Escape Mall project meets strict quality assurance parameters:

Technical Parameter Material / Performance Specification Standard Compliance
Membrane Type Premium PVDF Coated High-Tensile Polyester Fabric ISO 9001:2015 / EN 13782
Total Surface Area 1,200 m² Continuous Tensioned Coverage Architectural Project Spec
Tensile Strength (Warp/Weft) 4000 / 3800 N/5cm DIN 53354 / ASTM D751
Fire Resistance Rating Flame Retardant Class B1 / M2 / NFPA 701 DIN 4102-B1 / BS 7837
Structural Steel Support Hot-Dip Galvanized & Epoxy Coated Q355 Steel Tubing EN 10210 / ASTM A500
Weather & UV Resistance Anti-PVDF Surface Treatment, 100% Waterproof, Anti-Fungal ISO 105-B02 Grade 8

Engineering Advantages & Material Highlights

  • Energy-Efficient Translucency: Allows natural diffuse sunlight during daytime, substantially reducing artificial interior lighting operational costs.
  • Superior Wind Load Resistance: Designed using 3D finite element structural analysis to absorb aerodynamic wind dynamics up to 140 km/h.
  • Low Maintenance Self-Cleaning Surface: Fluoropolymer (PVDF) topcoat prevents dirt accumulation, facilitating natural cleaning via rainfall.
  • Long-Term Structural Durability: Engineered for an operational lifespan exceeding 20+ years under harsh desert climate conditions.
  • Rapid Modular Installation: Prefabricated structural steel and factory-welded membrane panels enabled fast-track site erection without disturbing mall operations.

Project Gallery & Structural Details

Explore technical execution details and visual evidence of the tensile membrane installation at City Escape Mall:

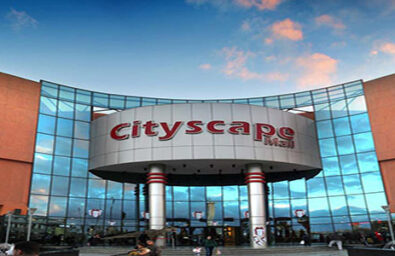

City Escape Mall 1200m2 Tensile Membrane Structure by ADM Egypt

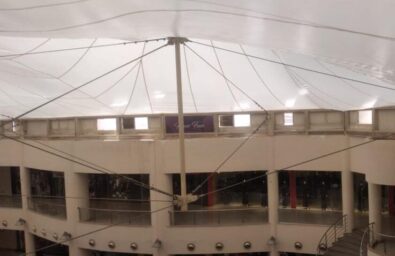

Architectural Tensile Structure Steel Anchor Detailing - ADM Egypt

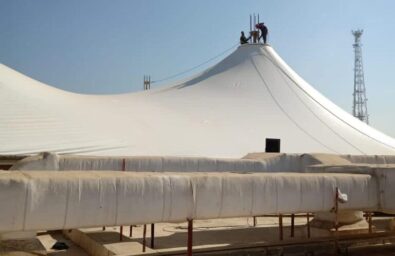

Commercial Mall Membrane Canopy Exterior View - ADM for Building Materials

Why International Procurement Teams Trust ADM

With over two decades of engineering leadership in Egypt and North Africa, ADM for Building Materials provides turnkey solutions ranging from architectural lighting fixtures to specialized structural membranes. Our engineering team conducts end-to-end quality inspection, rigorous tension testing, and material certification verifying all physical, fire, and load parameters prior to dispatch.
